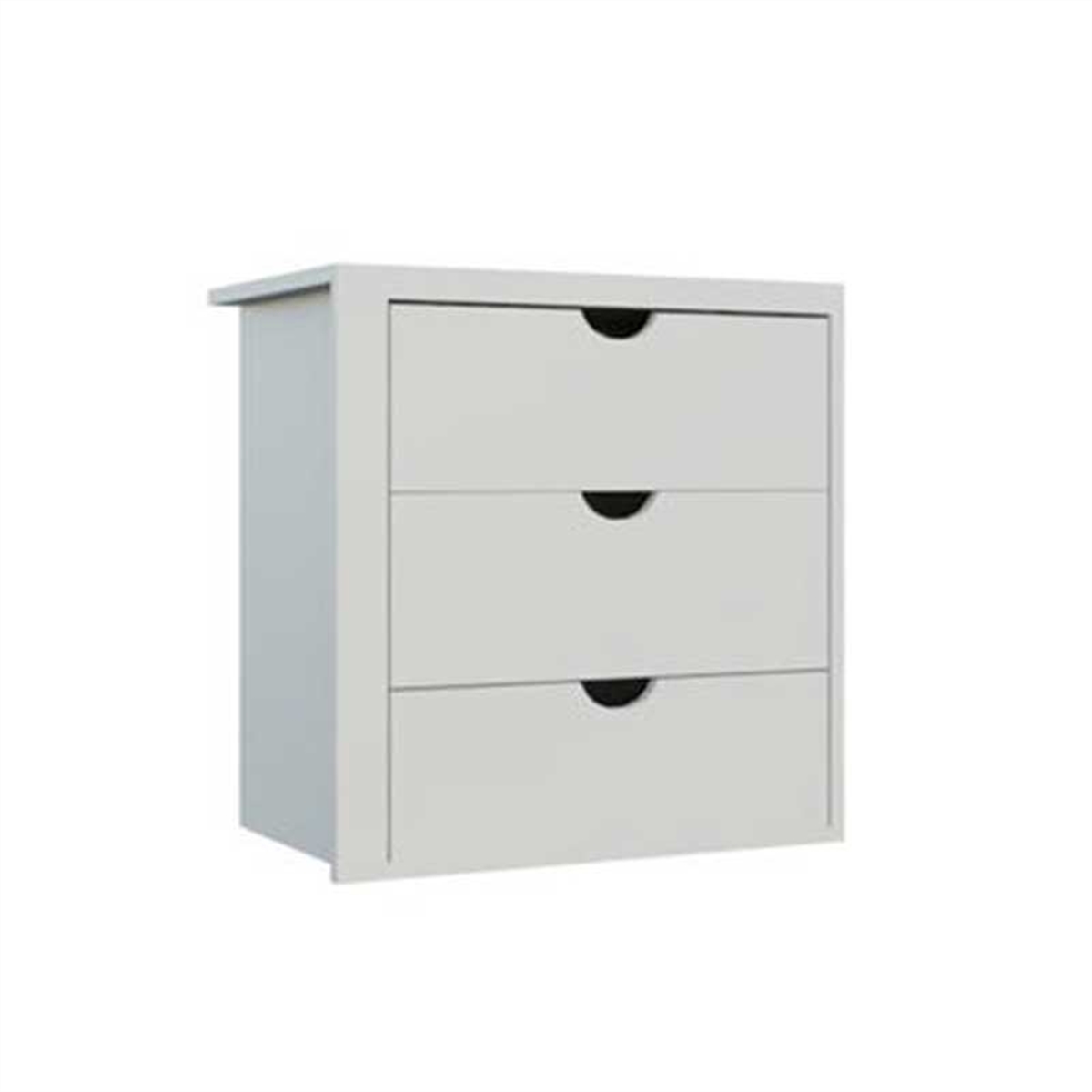

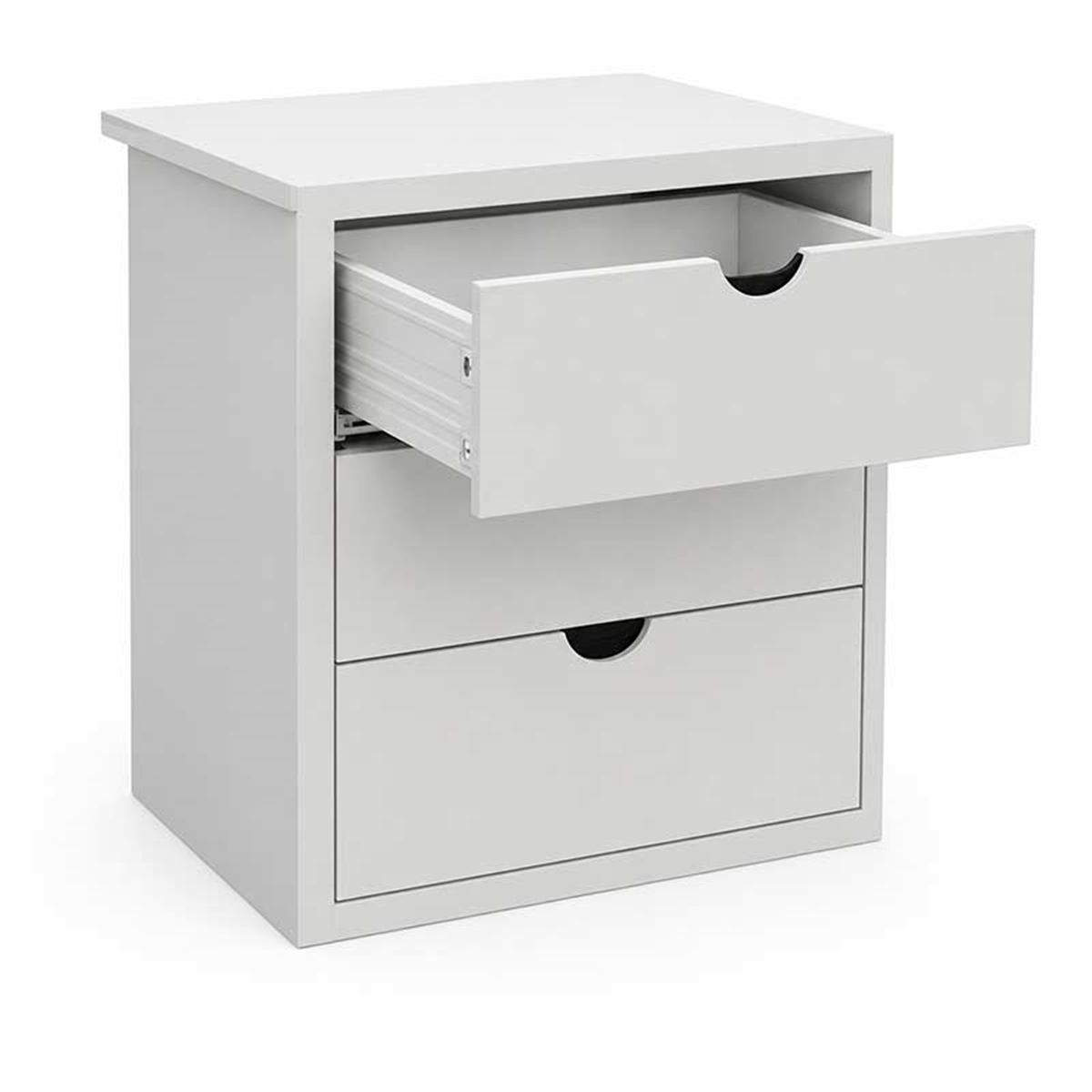

Three Drawer Internal Chest

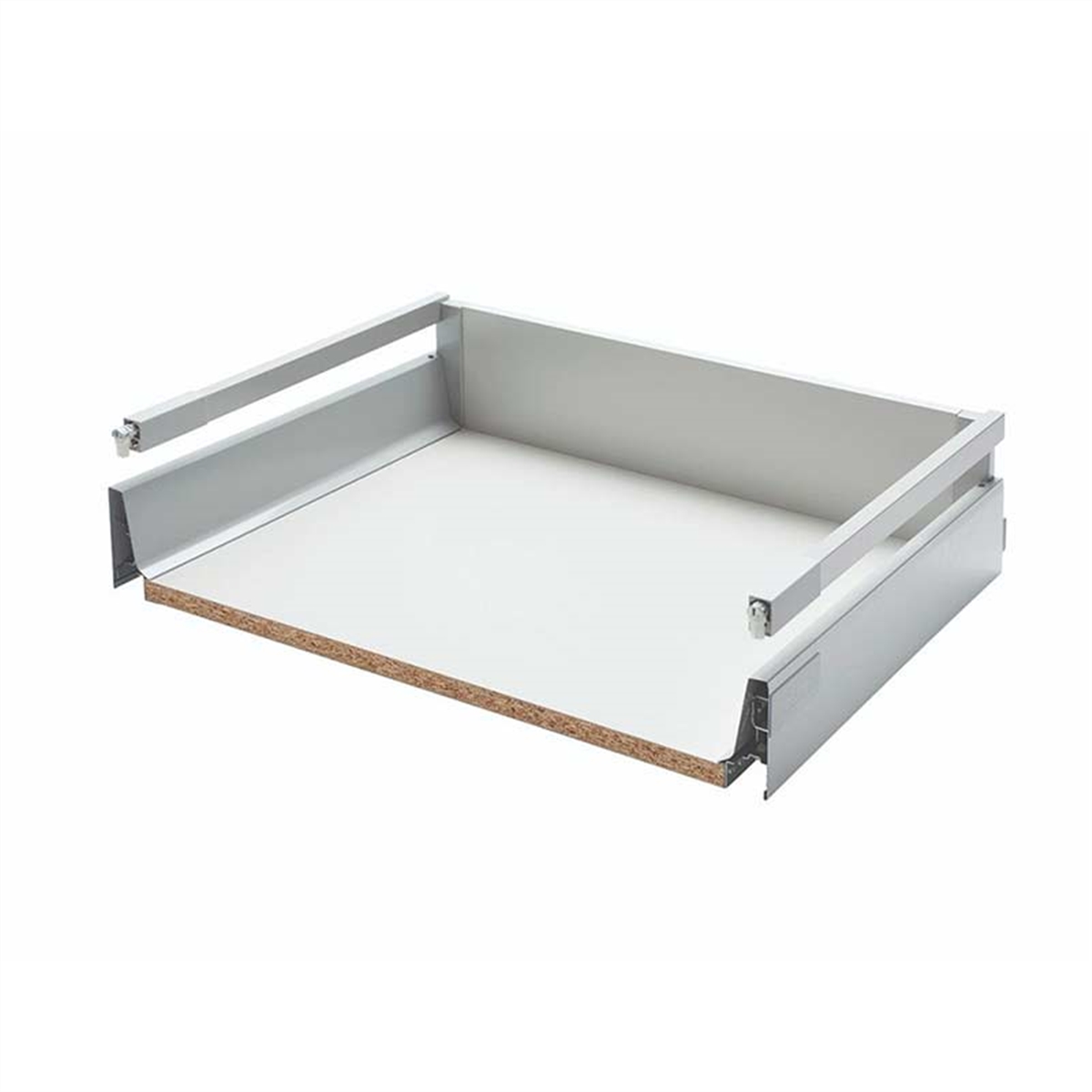

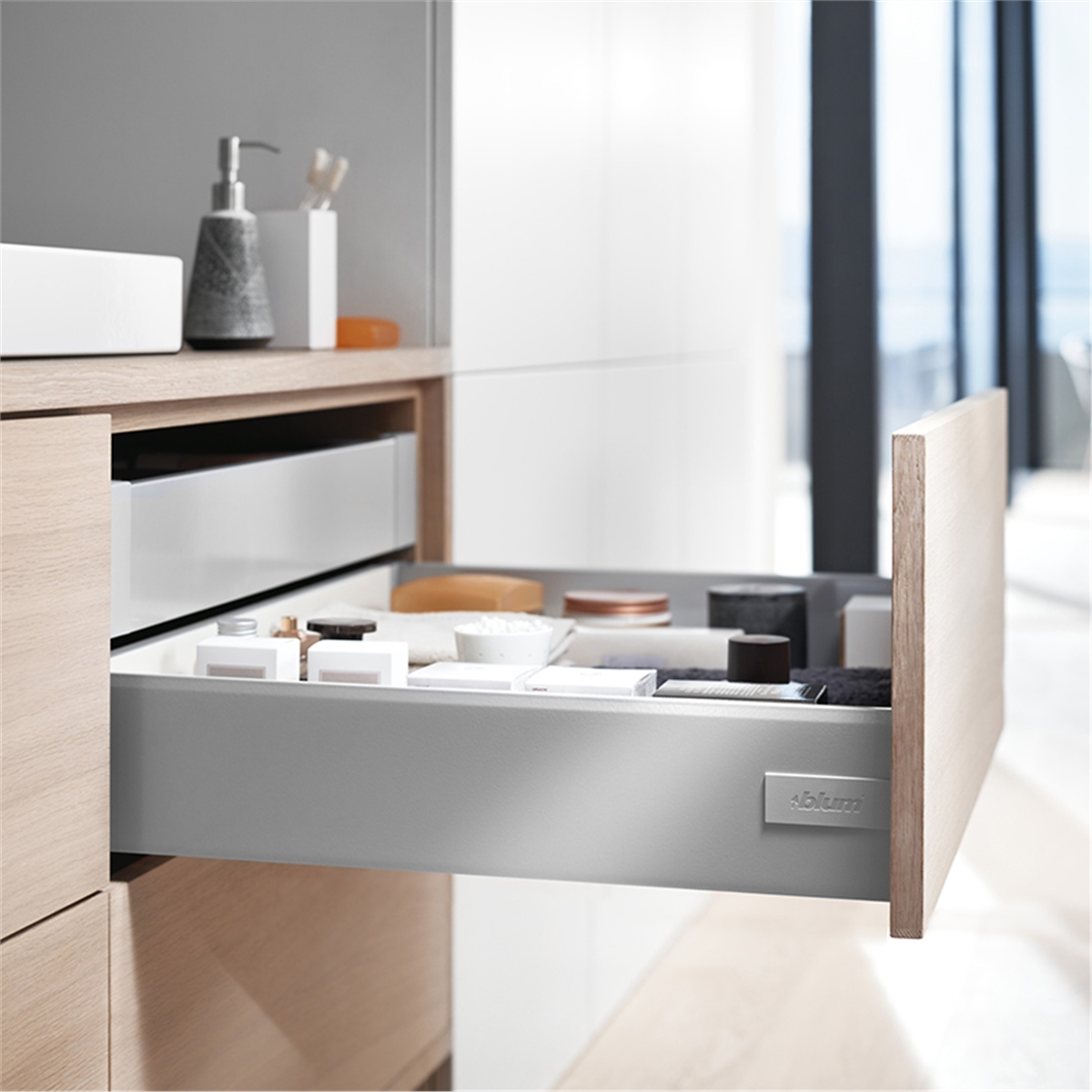

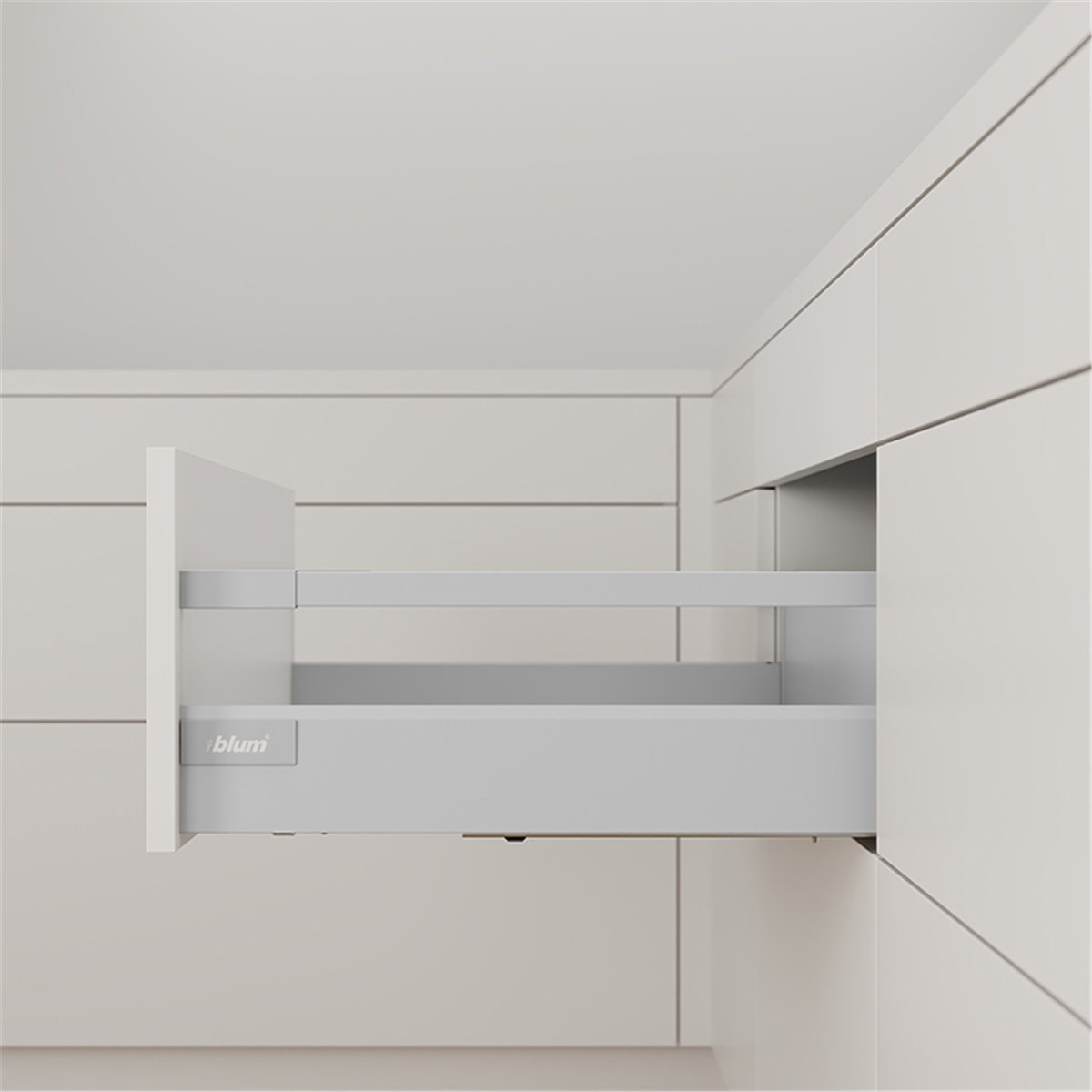

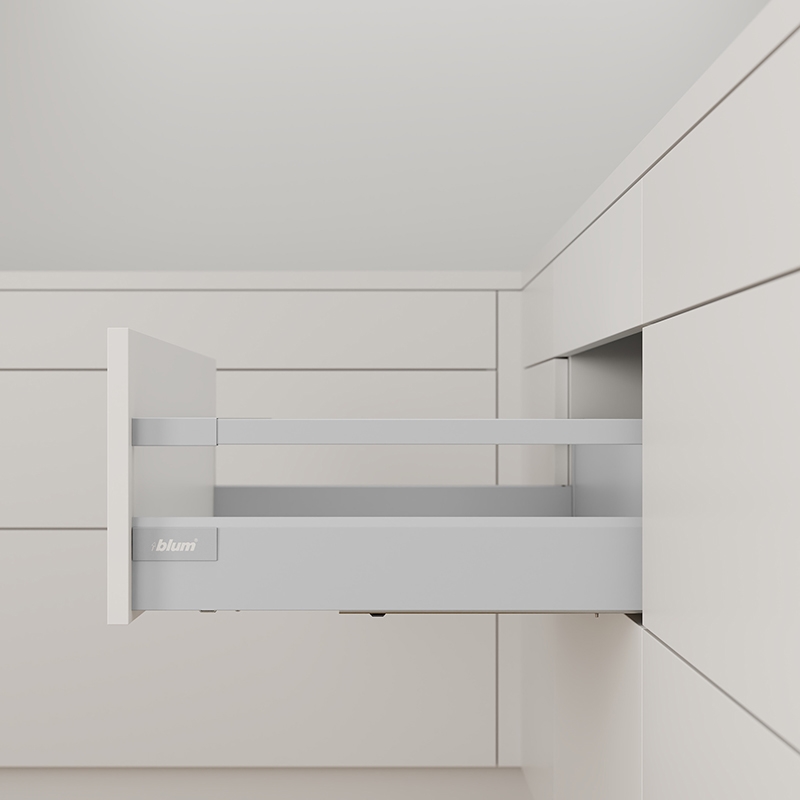

• Internal drawer unit is supplied assembled with Blum Tandembox Antaro soft close drawers, worktop and infil(s)

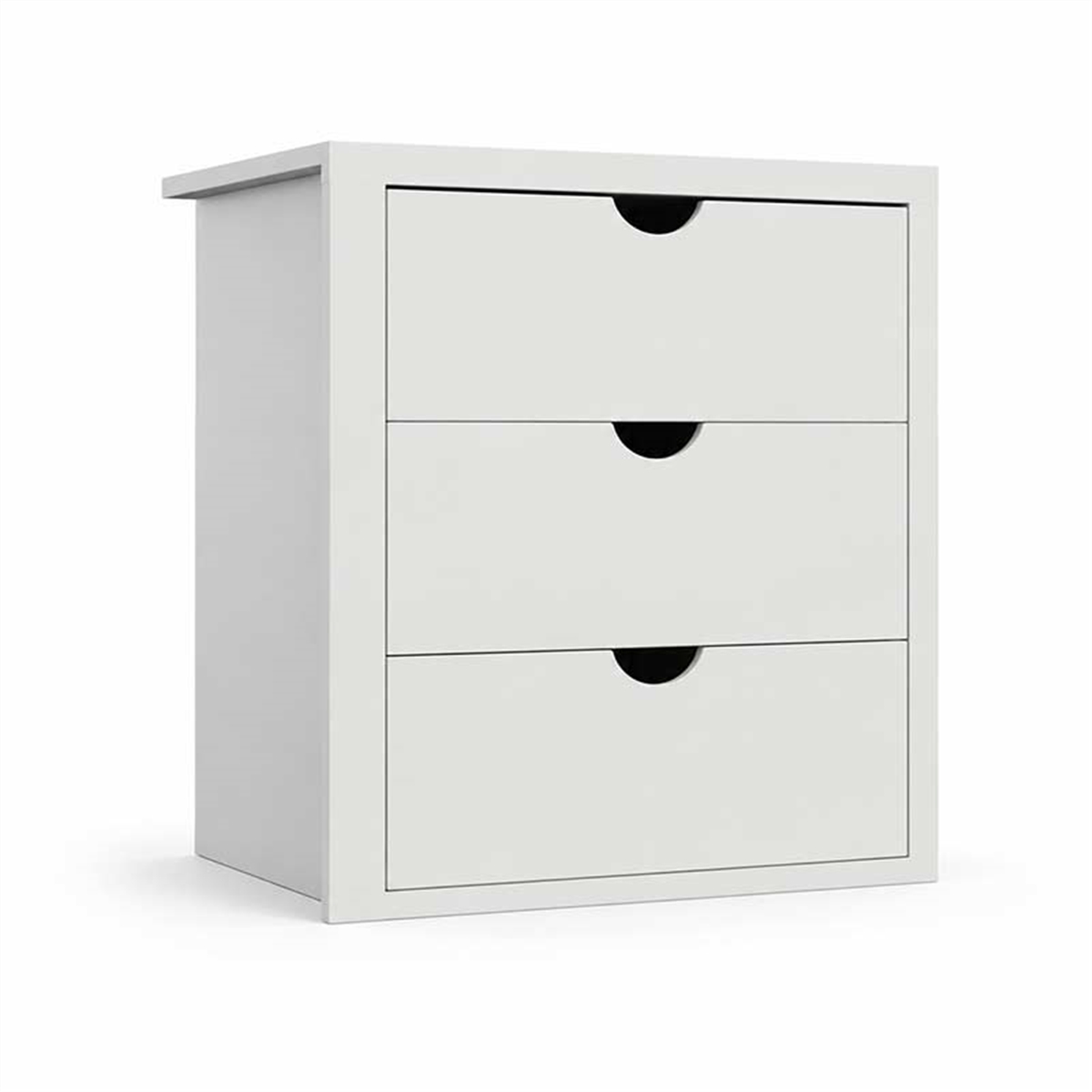

• Supplied with MFC scalloped drawer fronts (not pre drilled for fixing)
• Worktop extends to the full internal width of the wardrobe
• Height of cabinet includes worktop and 70mm plinth
• Infil panels 32mm wide, supplied loose, they fit back from the leading edge of the cabinet to allow for the fitting of the hinge plate to the side panel of the wardrobe
• Cabinet widths <600mm - supplied with 1 x infil panel to fit either left or right side of cabinet
• Cabinet widths >600mm - supplied with 2 x infil panel to fit both sides of cabinet
• Cabinet is made from 18mm MFC panels, including back panel
• Colour matched 0.8mm ABS edging on leading edge, option to have 2mm edging for additional protection

Notes:

• Intended for use with long hanging wardrobes
• Widths indicate the external wardrobe width the drawer unit will fit into, these measurements are based on the cabinet being made from 18mm panels.
• Fitting Example: 1000mm Internal Unit - will be supplied as a 900mm wide drawer unit with 2 x 32mm infil panels.
• Cabinet widths 400mm, 500mm & 600mm are supplied with 1 x 32mm infil panel

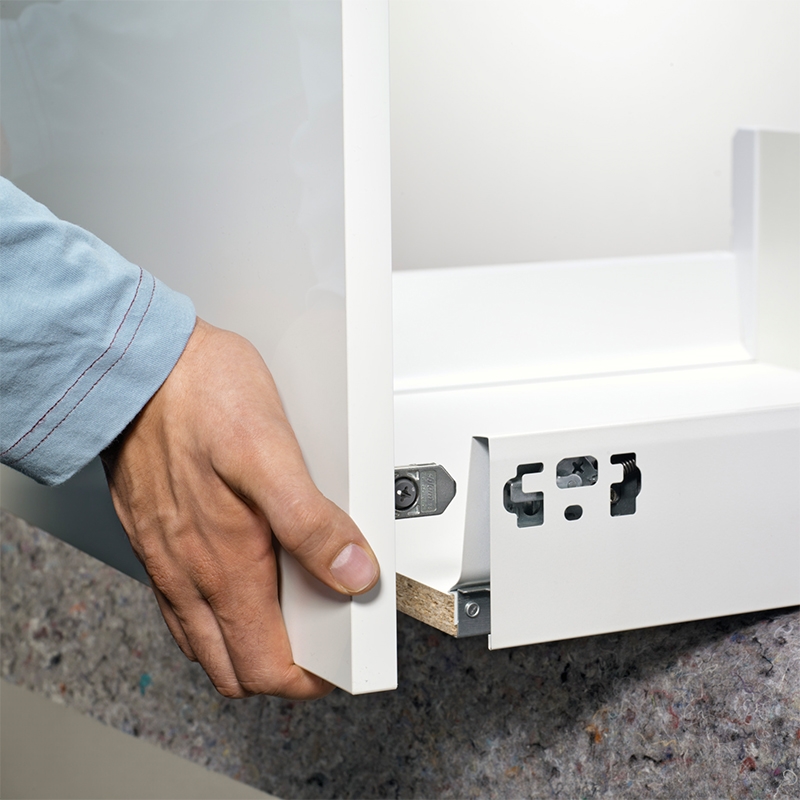

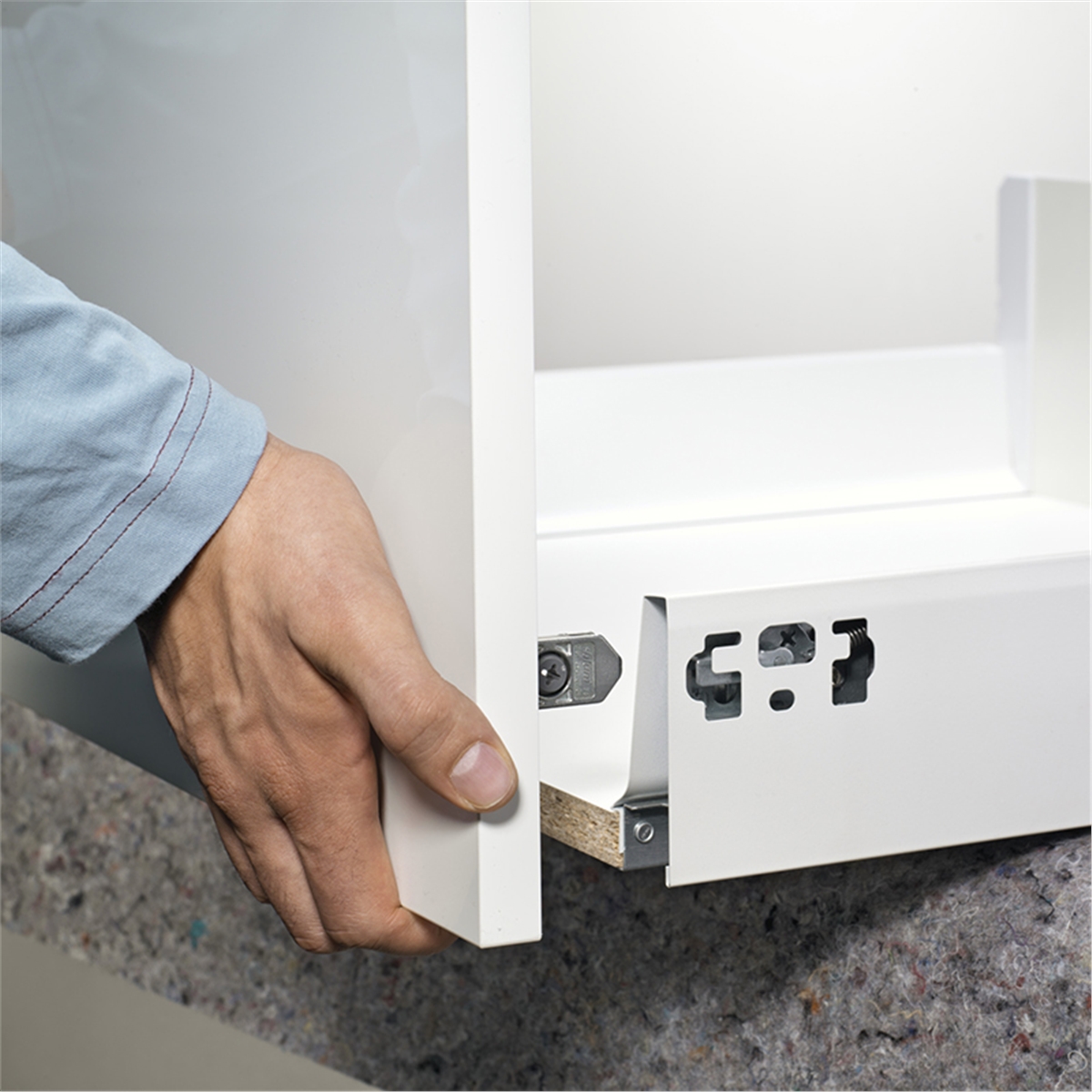

• Drawer fronts are not pre-drilled, knowledge will be required for spacing and application
• Assistance of an experienced fitter maybe required for assembly and installation
