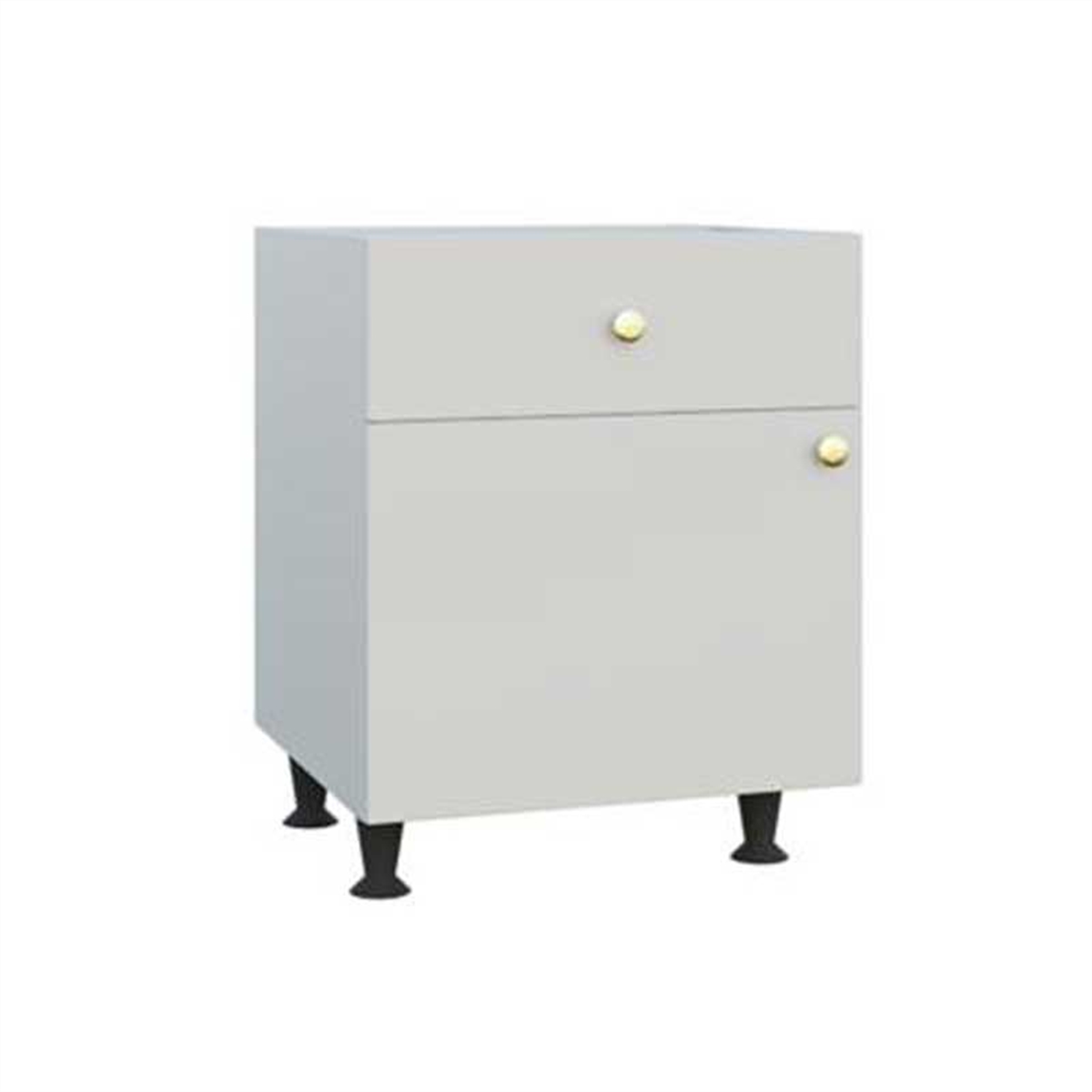

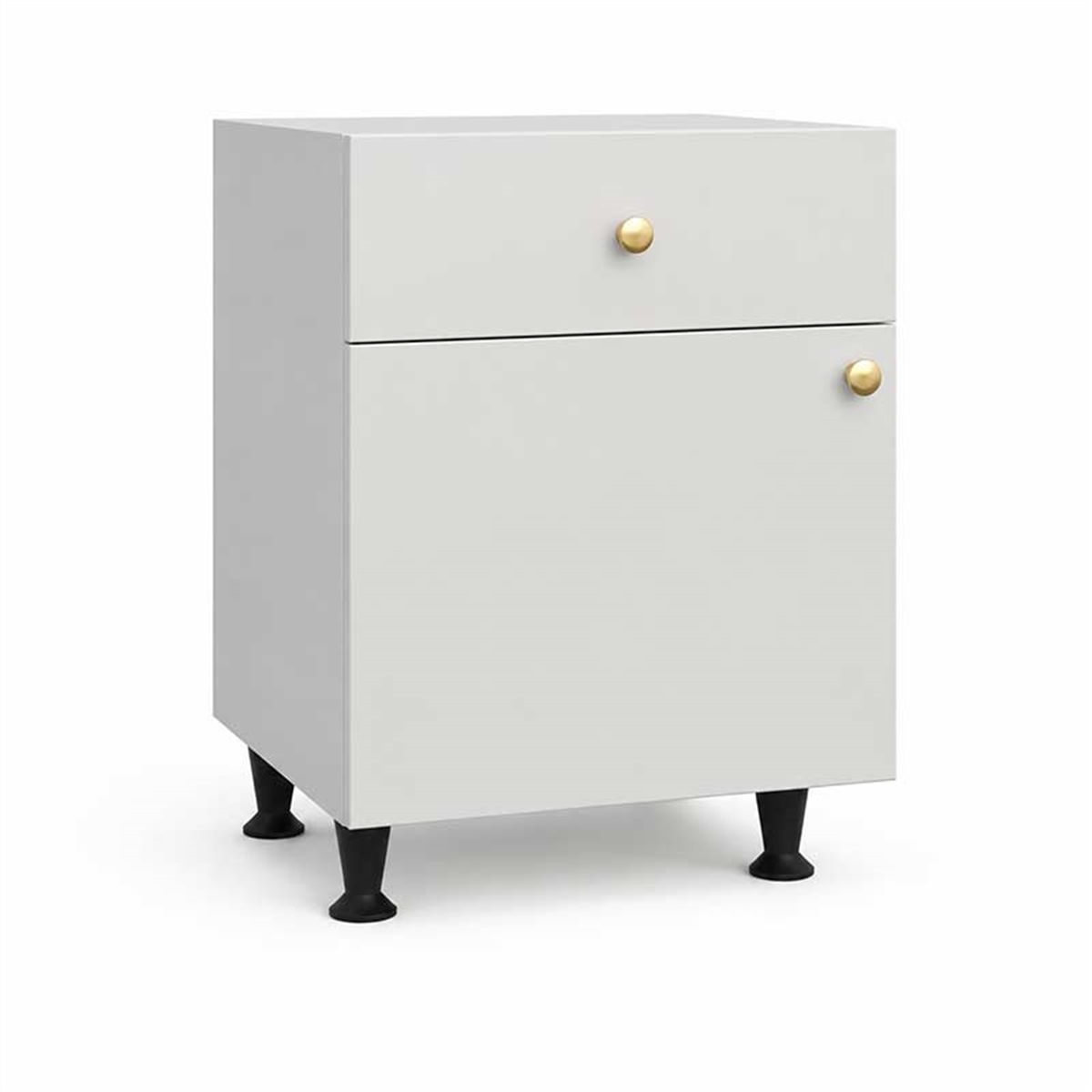

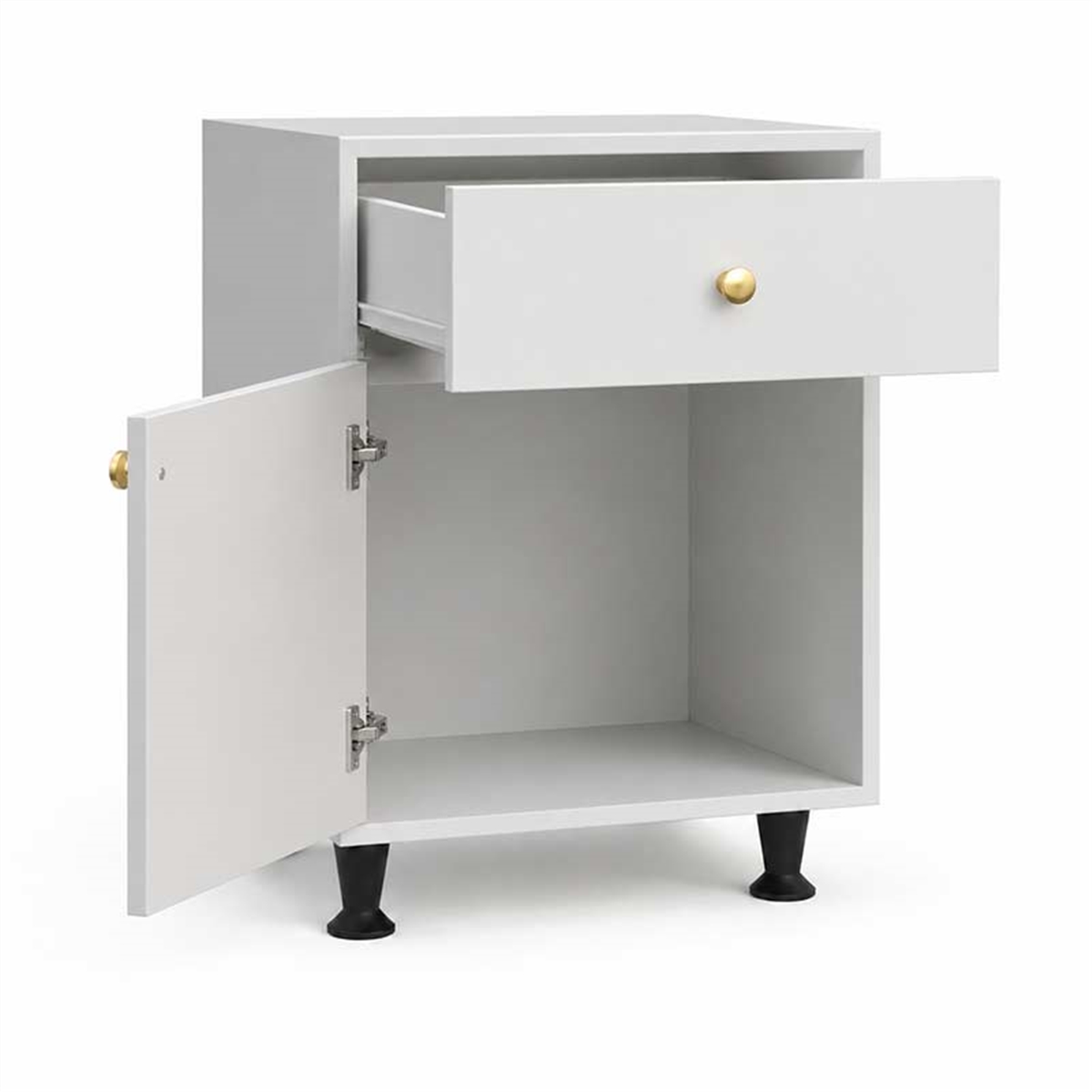

Drawline Bedside Unit

Key Features:

• Supplied assembled with drawer runners and box fitted
• Includes Blum soft close hinges
• Available in standard and bespoke sizes
• Large selection of finishes to match the door ranges
• Made to order in the UK
• Delivery: 2 - 3 weeks

Cabinet Construction:

• Made from 18mm MFC, including base, sides and back panel
• Service Void: 27mm
• Overall height of cabinet: 640mm exc worktop - cabinet 540mm + 100mm legs
• Supplied with a choice of high quality soft close drawer box, Metabox or Matrix

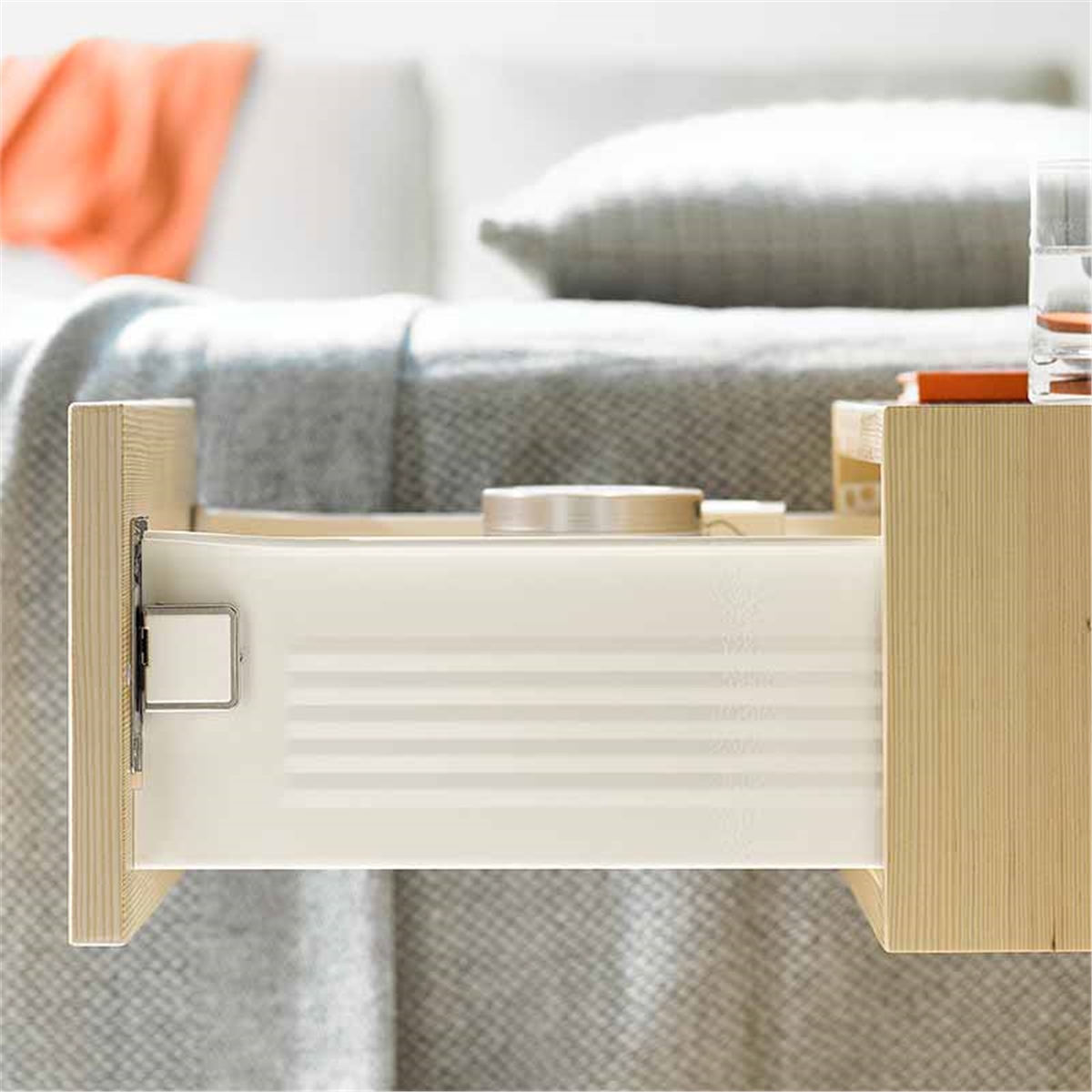

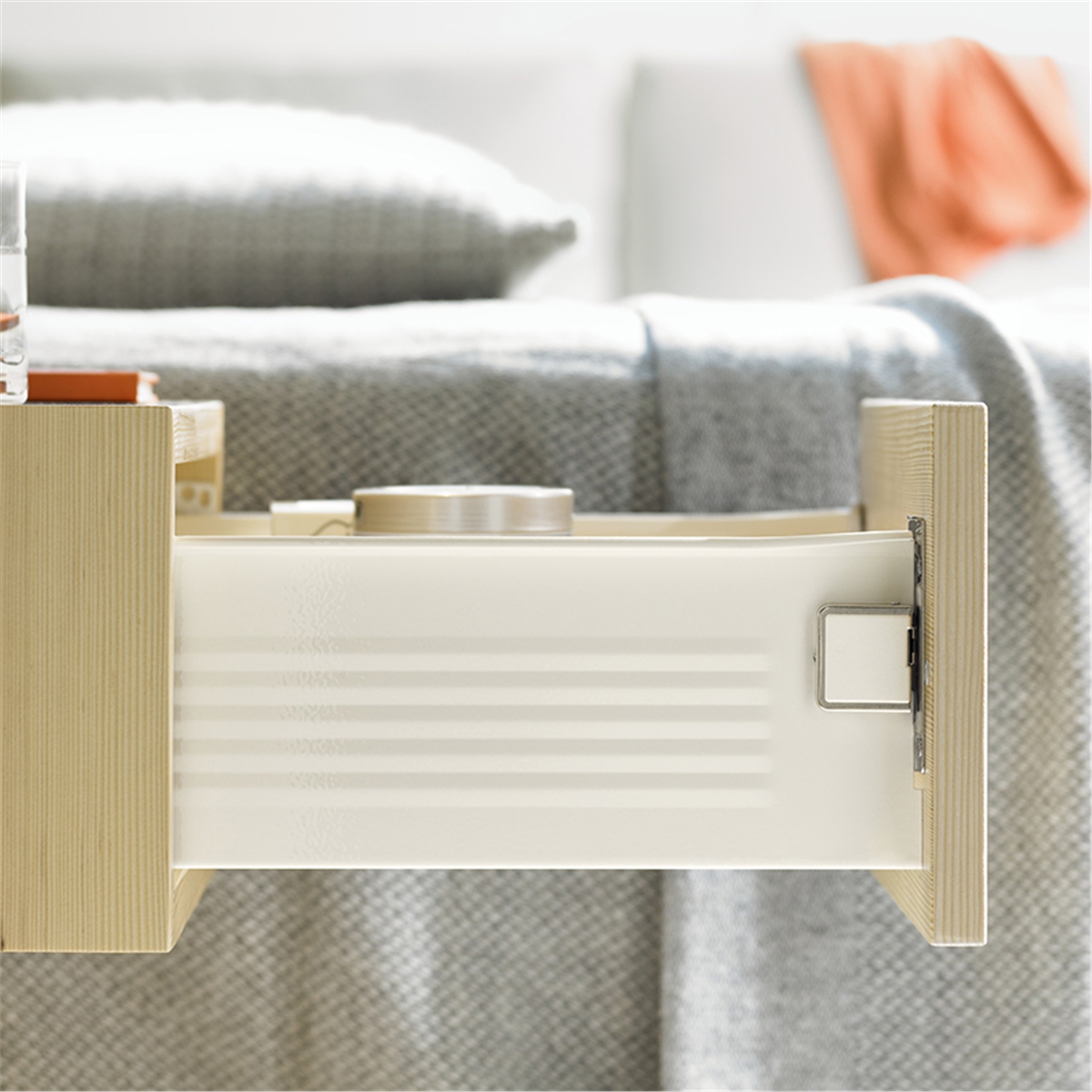

• Metabox: single extension runners with soft close, drawers close effortlessly. An economical option, construction is a single walled metal sided box with 18mm MFC base and back panel with a weight capacity of 25kg.

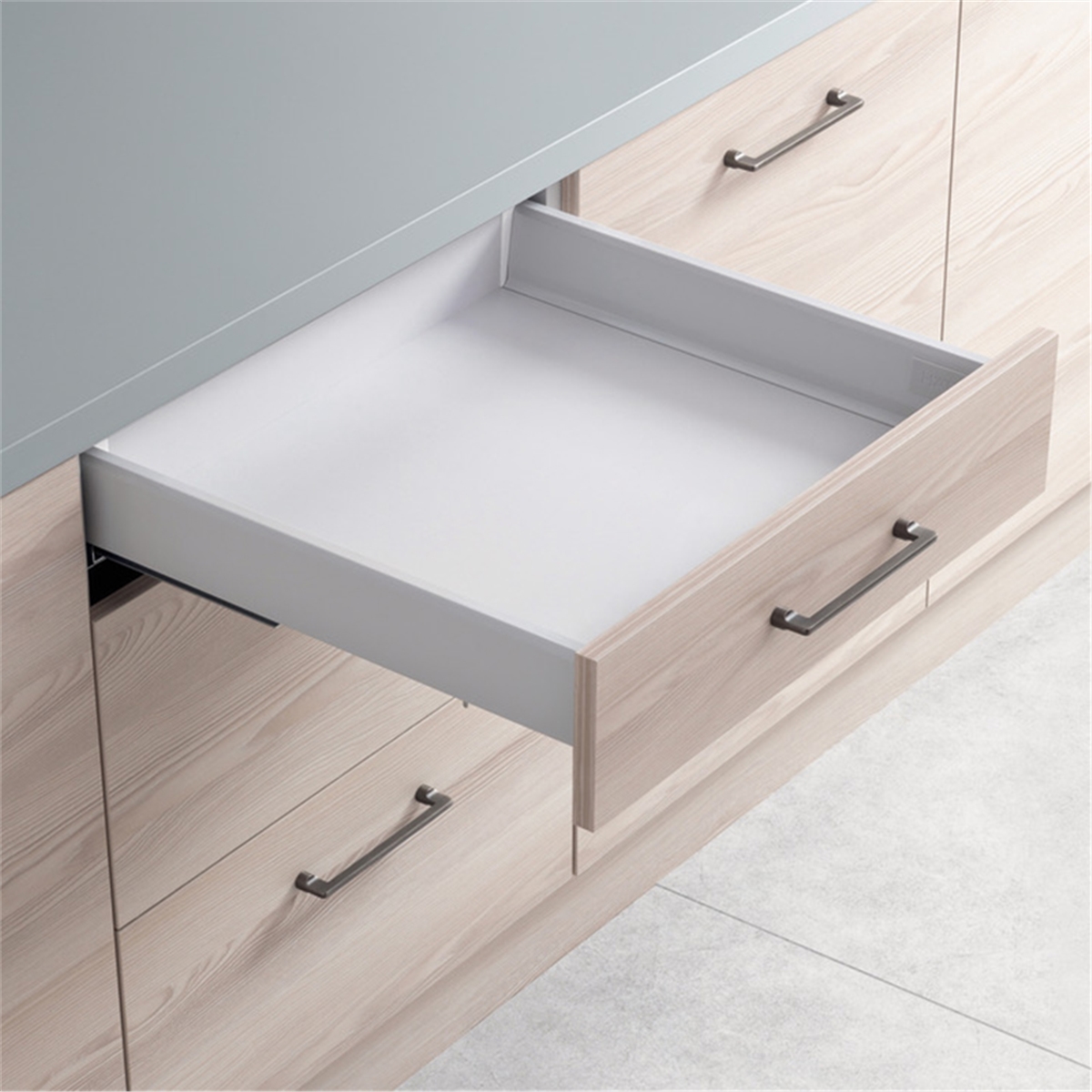

• Matrix: a premium drawer box with slim side walls and full extension, integrated soft close runners to ensure every inch of the drawer box is accessible. Available in two colours, Light Grey & Anthracite. Load capacity is 30kg with a 25 year guarantee.
• Blum 110 degree soft close hinges included
• Supplied with 4 x 100mm adjustable legs with plinth clips for easy levelling
• Colour matched 0.8mm ABS edging with option to upgrade to 2mm for added durability

• Suitable for use with Bella, Zurfiz and Valore doors and drawer fronts

Recommended Drawer Front Sizes:

• Cabinet Width: 400mm to 600mm supplied with one drawer
• Cabinet Width: 800mm to 1000mm supplied with two drawers (can be supplied with one drawer on request)
• Door and Drawer Front Height: drawer front height 115mm high and door height 415mm
• Door and Drawer Front Width: drawer front and door should be reduced by 4mm ie: 400mm cabinet = 396mm wide door and drawer front

Notes:

• Drawer front, door and worktop are not included
• Bedroom worktop shoudl extend the cabinet depth by a minimum of 20mm to overhang the tops of the drawer fronts
• THIS CABINET IS NOT SUITABLE AS A FREESTANDING UNIT, IT WILL NEED TO BE SECURED TO A WALL

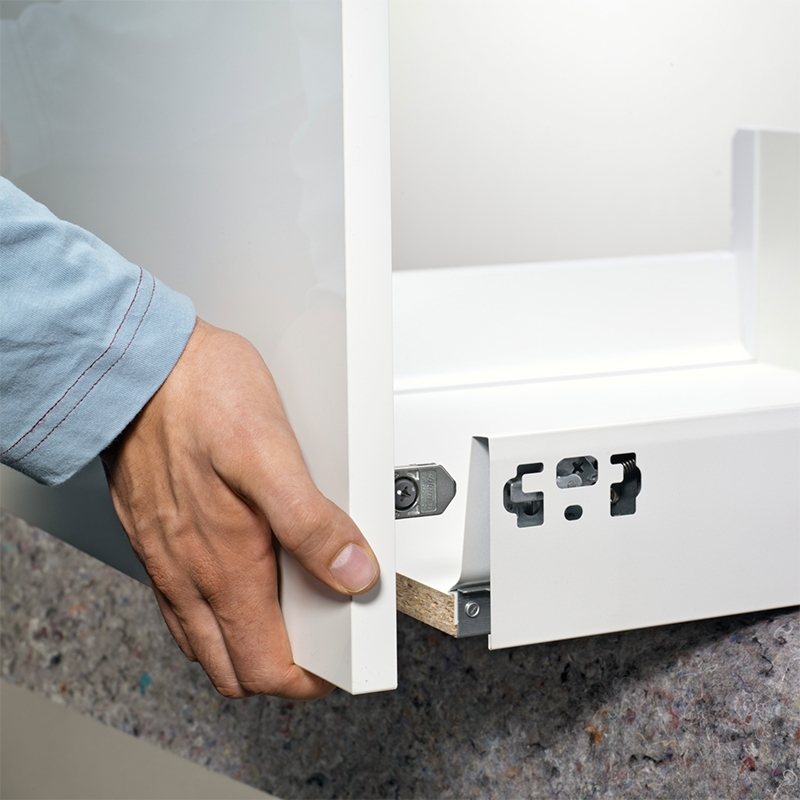

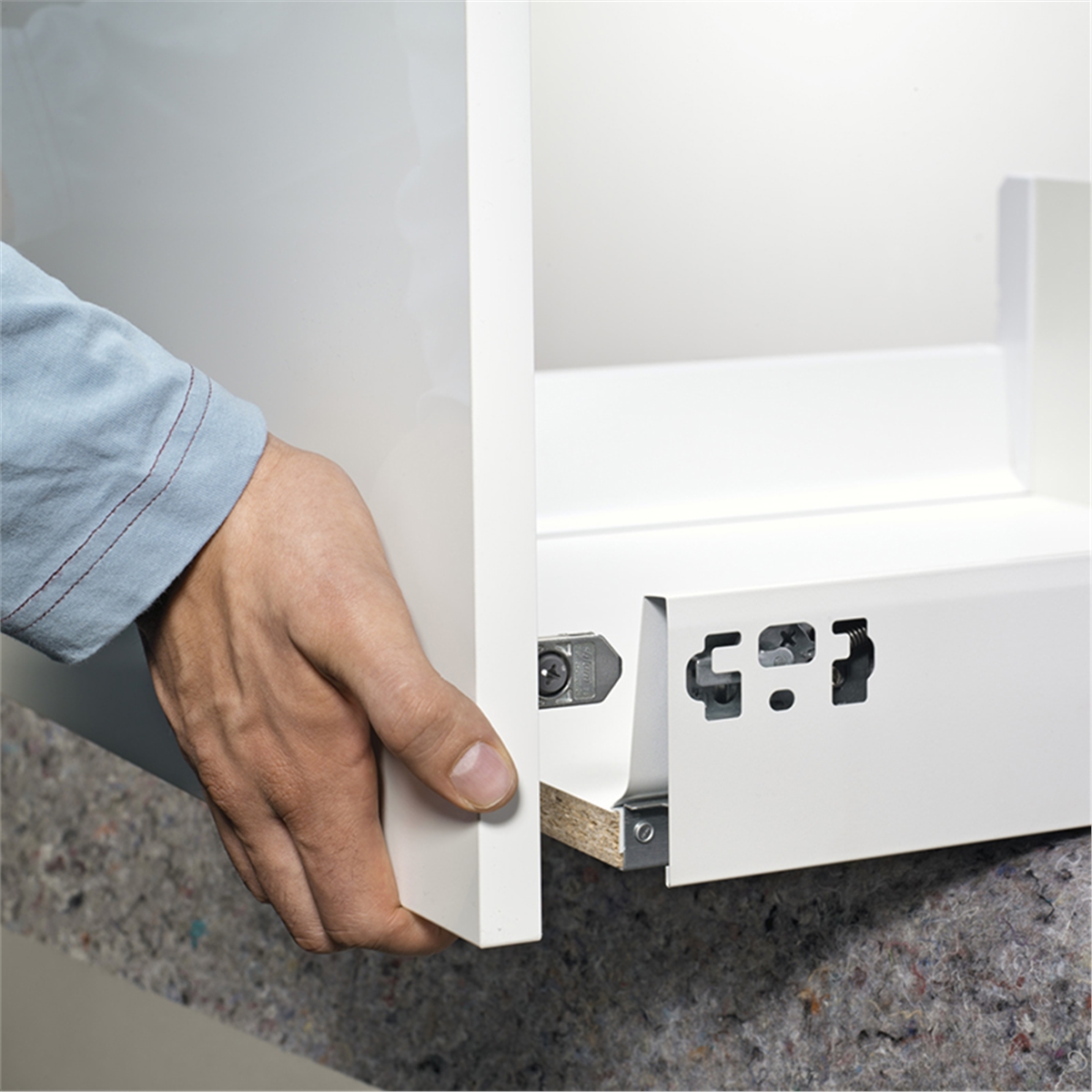

• Drawer fronts are not pre-drilled, knowledge will be required for fitting
• The assistance of a fitter maybe required for assembly and installation
